Custom Automotive Lamp Trim Mold

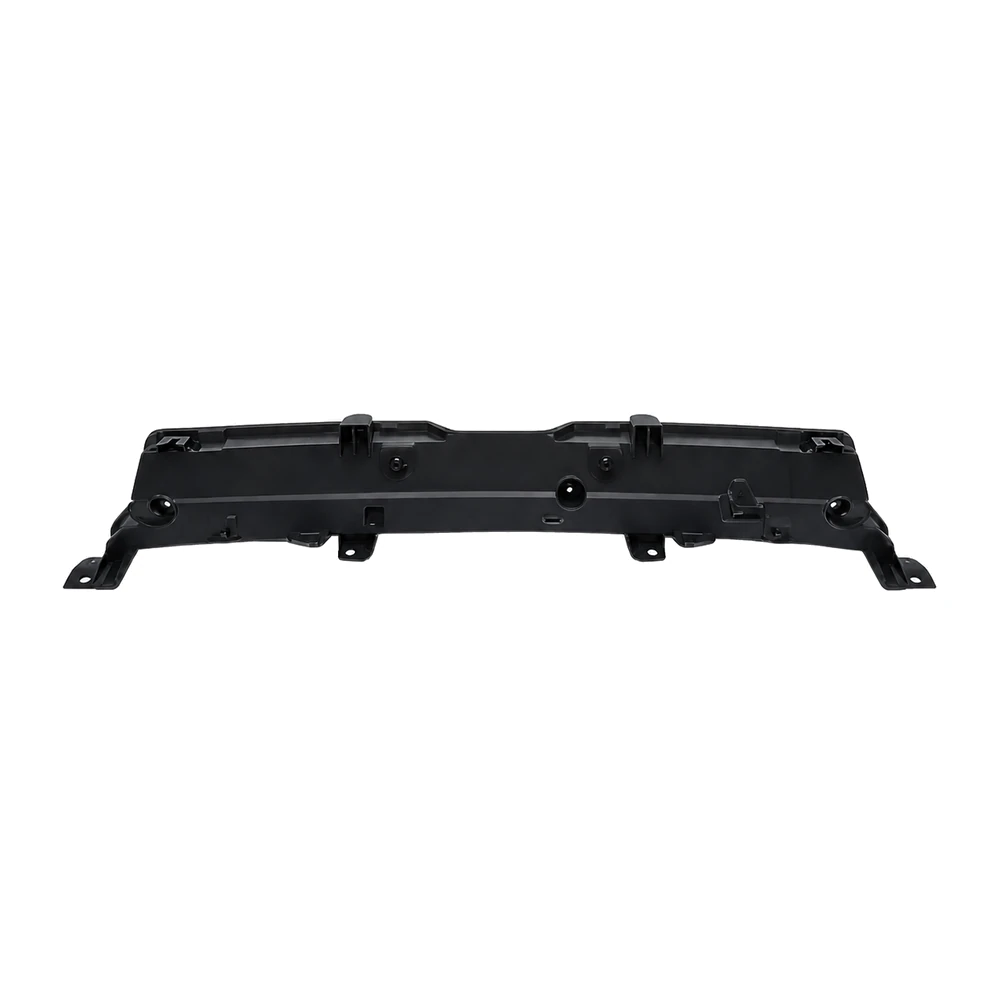

Moldie’s automotive lamp trim mold is engineered for stable plastic injection molding automotive projects that require accurate part fit, consistent appearance, and dependable mass-production performance. The tool is suitable for producing PP automotive lamp trim, lighting bezels, decorative frames, and related interior or exterior lighting components for OEM and aftermarket applications.

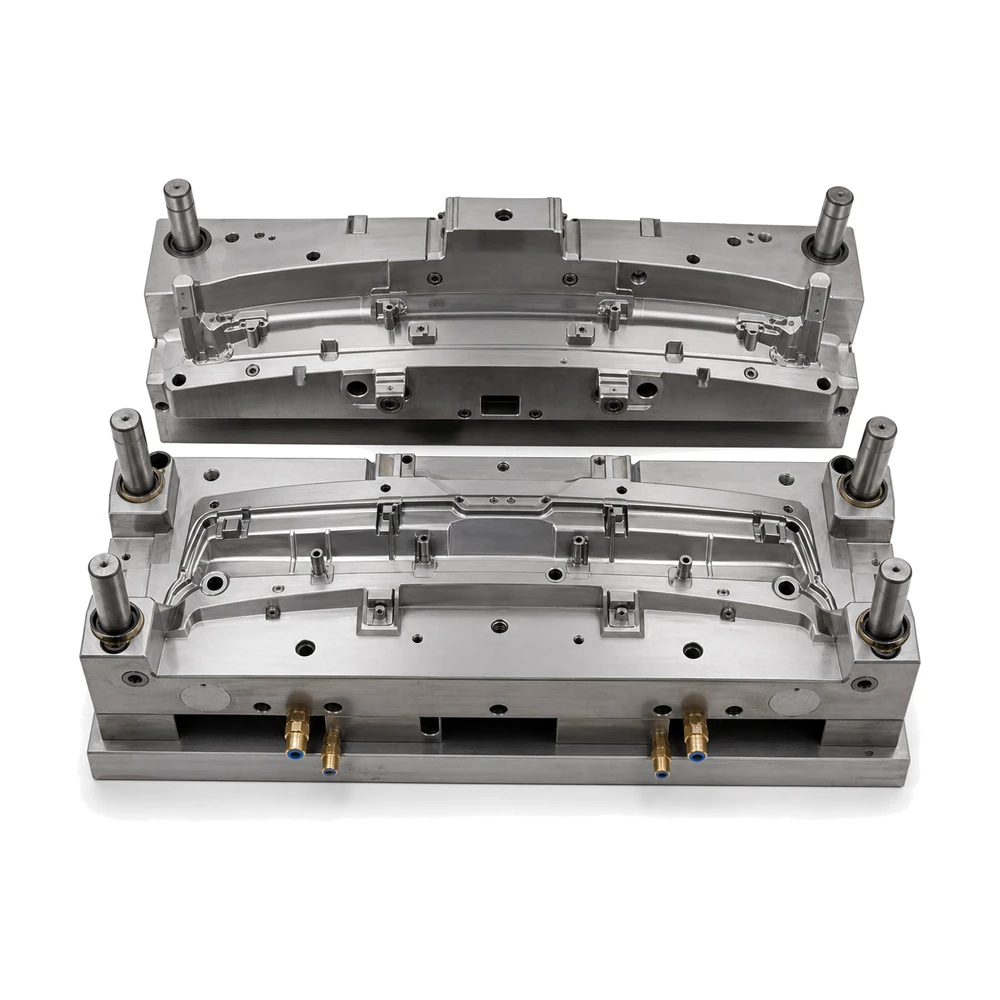

Built with a 718H cavity and core, an S50C mold base, and DME standard components, this automotive lamp trim mold combines reliable tooling strength with practical maintenance. The polished molding surface helps produce a clean and uniform appearance, while RAL and PANTONE color references support visual consistency across different production batches.
The single-cavity hot runner design supports controlled material flow and efficient molding of detailed lamp trim geometry. With a designed mold life of up to 300,000 shots, the mold is suitable for repeat production programs where surface quality and dimensional consistency are important.
Moldie provides complete project support, including DFM review, mold design, tooling manufacture, mold trials, sample inspection, and plastic injection molding. Each mold can be customized according to your 2D or 3D drawings, product samples, resin specifications, surface requirements, and expected production volume.
Send us your automotive lamp trim design to receive a customized tooling proposal, production schedule, and quotation.
Specification Sheet
| Specification | Details |
|---|---|
| Product Name | Automotive Lamp Trim Injection Mold |
| Molded Part Material | PP |
| Surface Finish | Polish |
| Color Reference | RAL / PANTONE |
| Cavity and Core Steel | 718H |
| Mold Base Steel | S50C |
| Standard Components | DME |
| Number of Cavities | 1 |
| Core and Cavity Hardness | 28–32 HRC |
| Runner System | Hot Runner |
| Expected Mold Life | Up to 300,000 Shots |
| Available Services | DFM, Mold Design, Tooling, Mold Trial, Sample Inspection and Injection Molding |
| Customization | Based on Drawings, Samples, Materials and Production Requirements |
