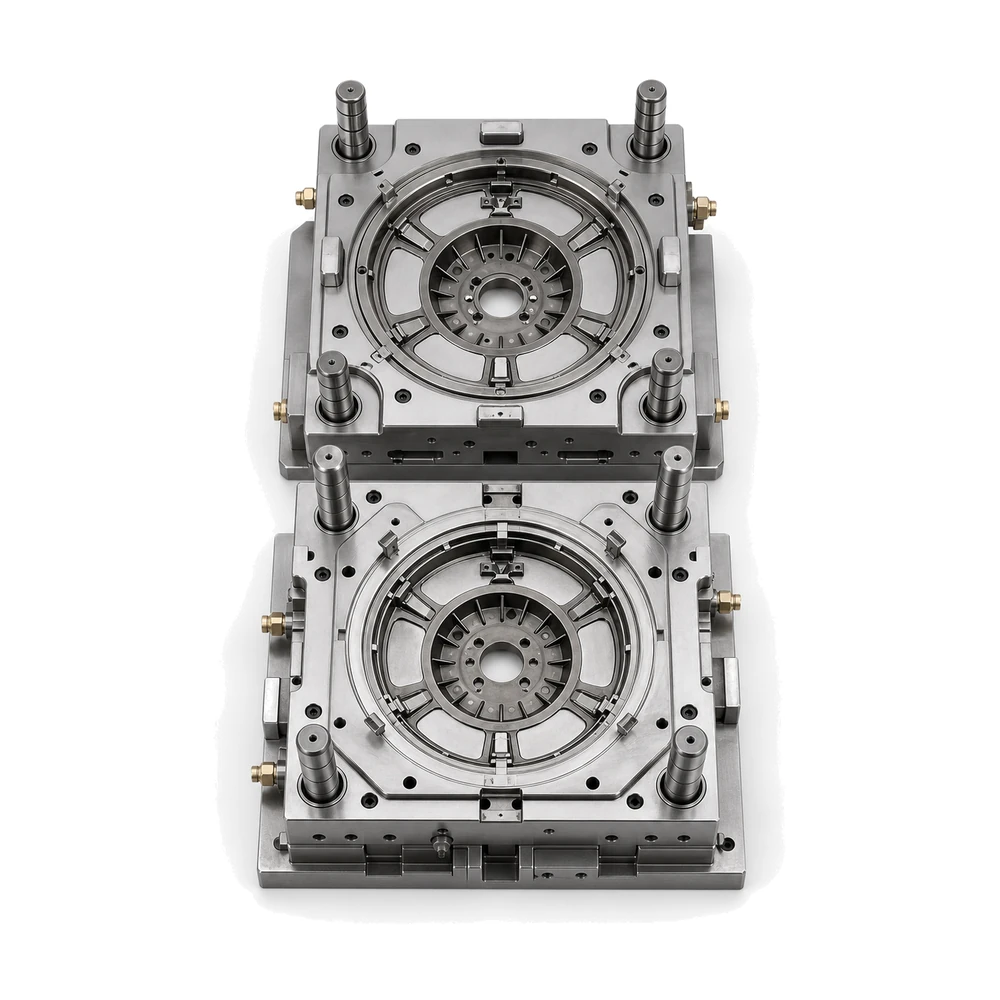

Custom Automotive Speaker Grille Mould

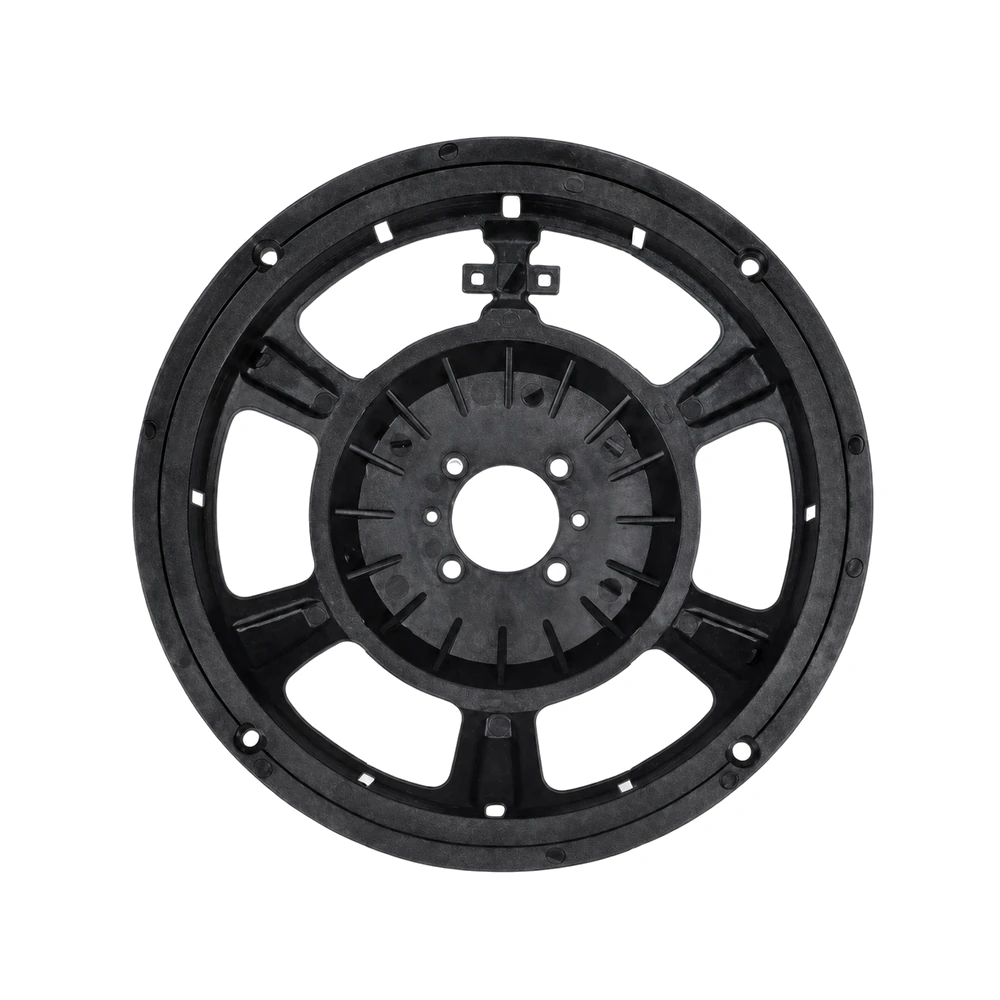

Moldie develops custom automotive speaker grille mould solutions for door panels, dashboards and vehicle audio systems. Designed for ABS reinforced with 17% glass fiber, this tooling supports rigid, dimensionally stable grille parts with a consistent textured finish.
The core and cavity are manufactured from H13 tool steel and hardened to 48–52 HRC. This configuration improves wear resistance when processing glass-fiber-reinforced materials during long production runs. An S45C steel mold base provides structural support, while internationally recognized DME components simplify future maintenance and replacement.
The cold runner system, cavity quantity, gate position, ejection structure and mold dimensions can be customized according to your grille design, annual output and injection molding machine. RAL and PANTONE references can also be followed to support consistent automotive interior color requirements.
With an expected mold life of up to 800,000 shots under suitable production and maintenance conditions, this automotive speaker grille mould is suitable for high-volume vehicle audio projects. Buyers comparing automotive injection molders can submit a 2D or 3D drawing, exact resin grade, surface texture, tolerance requirements and target production volume.
Moldie will evaluate the part structure, runner arrangement, cavity quantity and ejection requirements before recommending a project-specific tooling solution.
Specification Sheet
| Item | Specification |
|---|---|
| Product Name | Automotive Speaker Grille Mould |
| Application | Vehicle speaker grilles and audio interior parts |
| Molded Material | ABS+17%GF |
| Surface Finish | Texture |
| Color Reference | RAL / PANTONE |
| Core and Cavity Steel | H13 |
| Core and Cavity Hardness | 48–52 HRC |
| Mold Base Steel | S45C |
| Standard Components | DME |
| Runner System | Cold Runner |
| Number of Cavities | Customized |
| Expected Mold Life | Up to 800,000 shots |
Send us your product drawing, resin specification, annual production volume and injection molding machine information to request a customized automotive speaker grille mould quotation.
