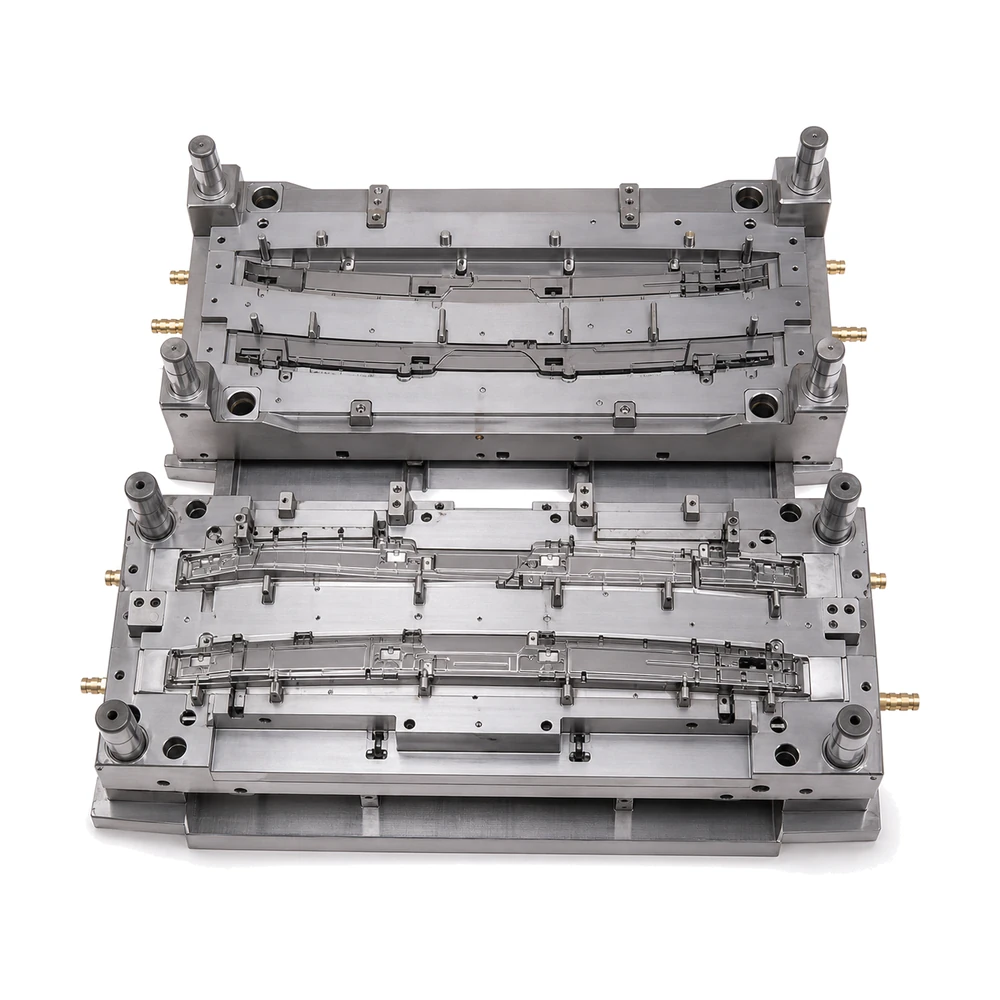

Moldie develops precision tooling for injection moulding automotive part applications, including custom automotive lamp guide bracket mold solutions for headlamp and rear-lamp assemblies. The mold is engineered to produce stable PC guide brackets with controlled dimensions, clean surfaces, and consistent fit with surrounding lamp components.
Our engineering team supports DFM analysis, mold-flow review, gate and runner planning, cooling optimization, and trial production before shipment. H13 cavity and core steel, a S45C mold base, HASCO components, and a hot-runner system provide dependable performance for repeat automotive production. Each project can be customized according to your 2D drawings, 3D files, resin requirements, tolerance standards, surface specifications, and expected annual volume.

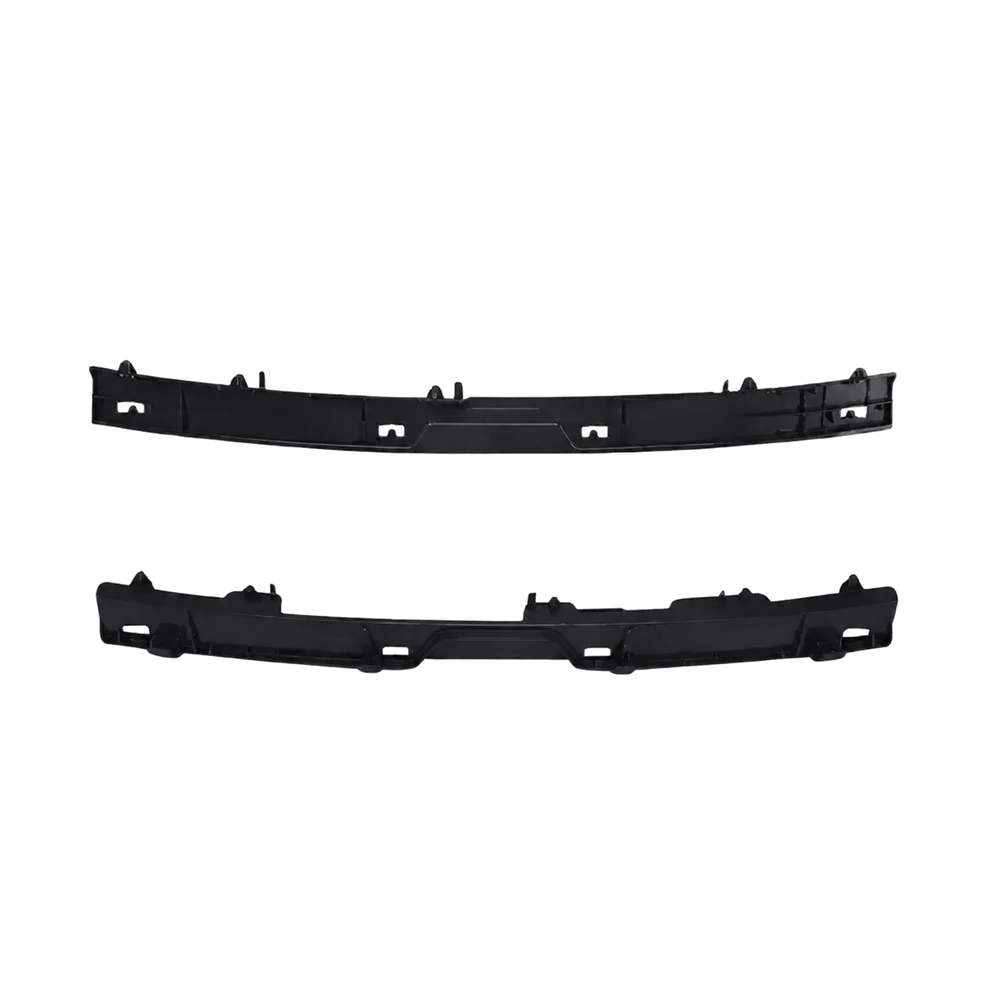

The molded PC bracket offers high impact strength, thermal stability, and dimensional consistency for demanding vehicle-lighting environments. Precise tool construction helps control warpage, flashing, shrinkage, and assembly variation. Moldie can also provide injection molding, inspection, surface finishing, assembly, and export support, allowing automotive suppliers to manage tooling and part production through one manufacturing partner.
Specification Sheet
| Specification | Details |
|---|---|
| Product | Automotive Lamp Guide Bracket Mold |
| Application | Automotive Headlamp or Rear-Lamp Guide Bracket |
| Molded Material | PC |
| Surface Finish | Polished |
| Color Standard | RAL / PANTONE |
| Cavity and Core Steel | H13 |
| Mold Base | S45C |
| Standard Components | HASCO |
| Number of Cavities | 1 |
| Steel Hardness | 48–52 HRC |
| Runner System | Hot Runner |
| Expected Mold Life | Up to 600,000 Shots |
| Customization | Steel Grade, Cavity Layout, Runner, Texture, Color, and Part Design |
Send your CAD files, material specifications, target tolerance, and annual demand to receive a DFM review and quotation for your automotive lamp guide bracket mold project.
