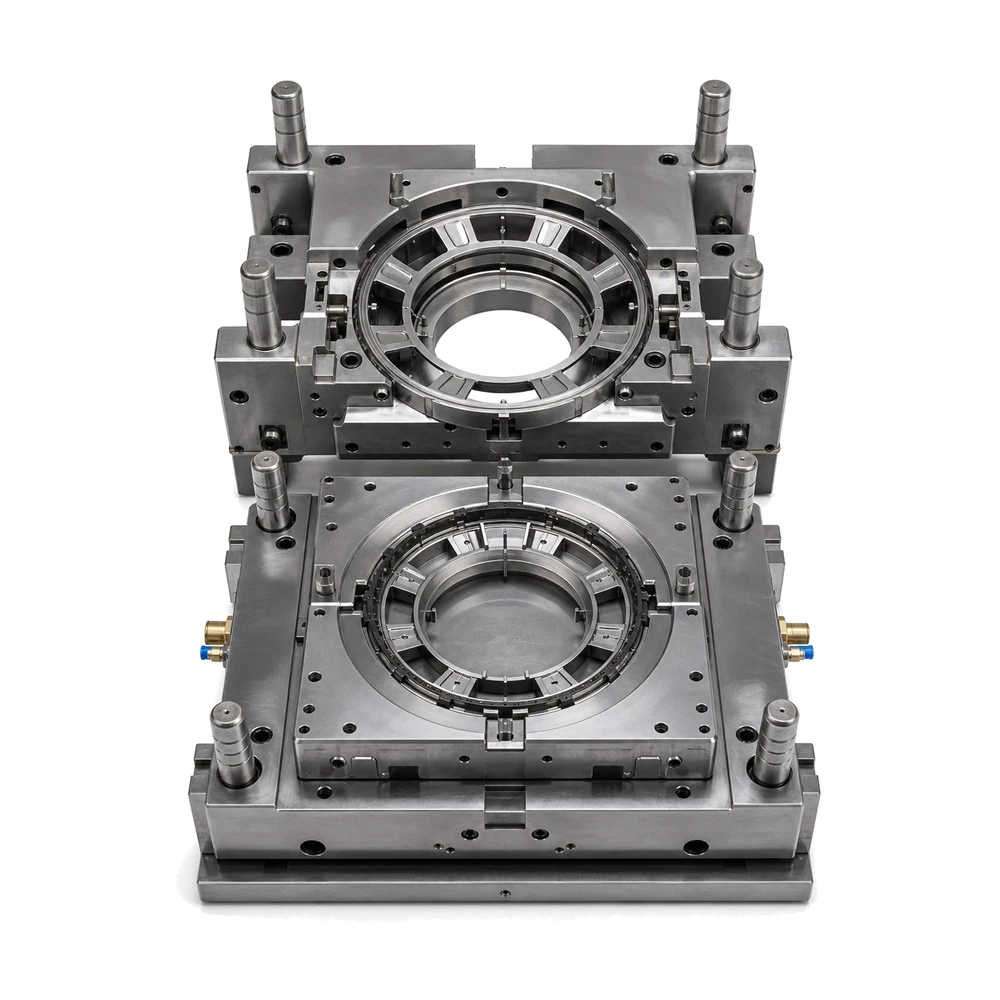

Custom Plastic Speaker Grille Injection Mold
Moldie provides professional automotive mold making for speaker grille components used in vehicle doors, dashboards and interior audio systems. This plastic speaker grille injection mold is designed for ABS parts that require stable dimensions, refined texture and consistent appearance during repeated production.
The mold core and cavity are manufactured from heat-treated H13 steel with a hardness of 48–52 HRC. This hardened tooling structure provides improved wear resistance during continuous injection molding. An S45C steel mold base supports the mold during repeated high-pressure production cycles.
HASCO standard components are used to improve component compatibility and simplify future mold maintenance. The cold runner system and cavity arrangement can be customized according to the speaker grille size, required annual output and injection molding machine capacity.
With an expected mold life of up to 800,000 shots under proper operating and maintenance conditions, this tooling solution is suitable for long-term automotive audio production. The molded speaker grille can feature a refined textured surface, while RAL and PANTONE references can be followed to maintain consistent interior color requirements.
As an experienced automotive mold making supplier, Moldie can customize the gate position, runner layout, ejection structure, cavity quantity and mold dimensions according to your 2D or 3D product drawing.
Specification Sheet
| Item | Specification |
|---|---|
| Product Name | Plastic Speaker Grille Injection Mold |
| Application | Automotive speaker grilles and audio interior parts |
| Molded Part Material | ABS |
| Surface Finish | Texture |
| Color Standard | RAL / PANTONE |
| Core and Cavity Steel | H13 |
| Core and Cavity Hardness | 48–52 HRC |
| Mold Base Steel | S45C |
| Standard Components | HASCO |
| Runner System | Cold Runner |
| Number of Cavities | Customized |
| Expected Mold Life | Up to 800,000 shots |
Send us your 2D or 3D drawing, ABS material grade, annual production volume and injection molding machine information. Moldie will evaluate the appropriate plastic speaker grille injection mold structure and provide a project-specific quotation.
