High Volume Car Speaker Mold for Automotive Injection Molding

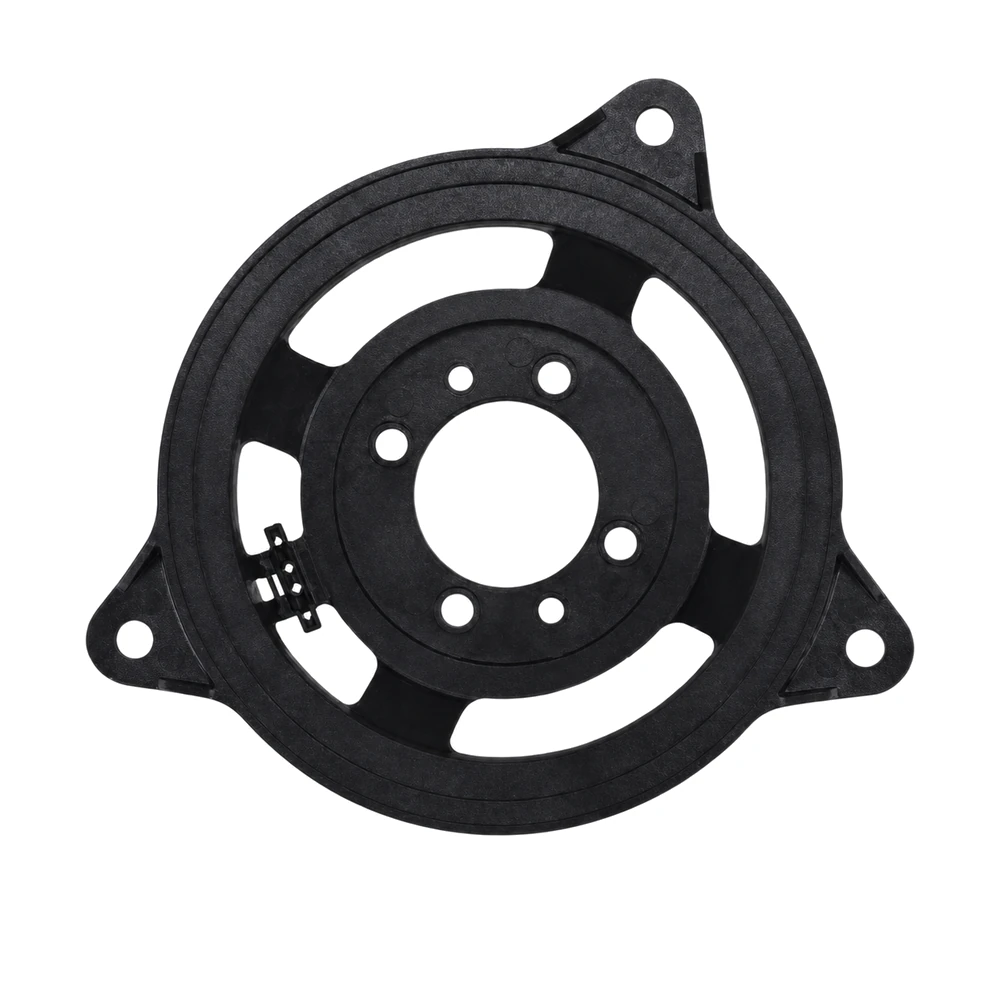

Moldie manufactures the high volume car speaker mold for automotive speaker housings and interior audio components. Designed for ABS+17%GF, this mold features hardened H13 core and cavity steel, an S45C mold base and DME standard components.
With an expected mold life of up to 800,000 shots, it is suitable for high-volume automotive production requiring durability and stable performance. As part of our custom automotive injection molds service, cavity quantity, runner layout, ejection system and mold dimensions can be customized according to your project requirements.
Mold and Product Specifications
| Item | Specification |
|---|---|
| Product Name | High Volume Car Speaker Mold |
| Molded Part Material | ABS+17%GF |
| Surface Finish | Texture |
| Color Reference | RAL / PANTONE |
| Core and Cavity Steel | H13 |
| Core and Cavity Hardness | 48–52 HRC |
| Mold Base Steel | S45C |
| Standard Components | DME |
| Runner System | Cold Runner |
| Number of Cavities | Customized |
| Expected Mold Life | Up to 800,000 shots |

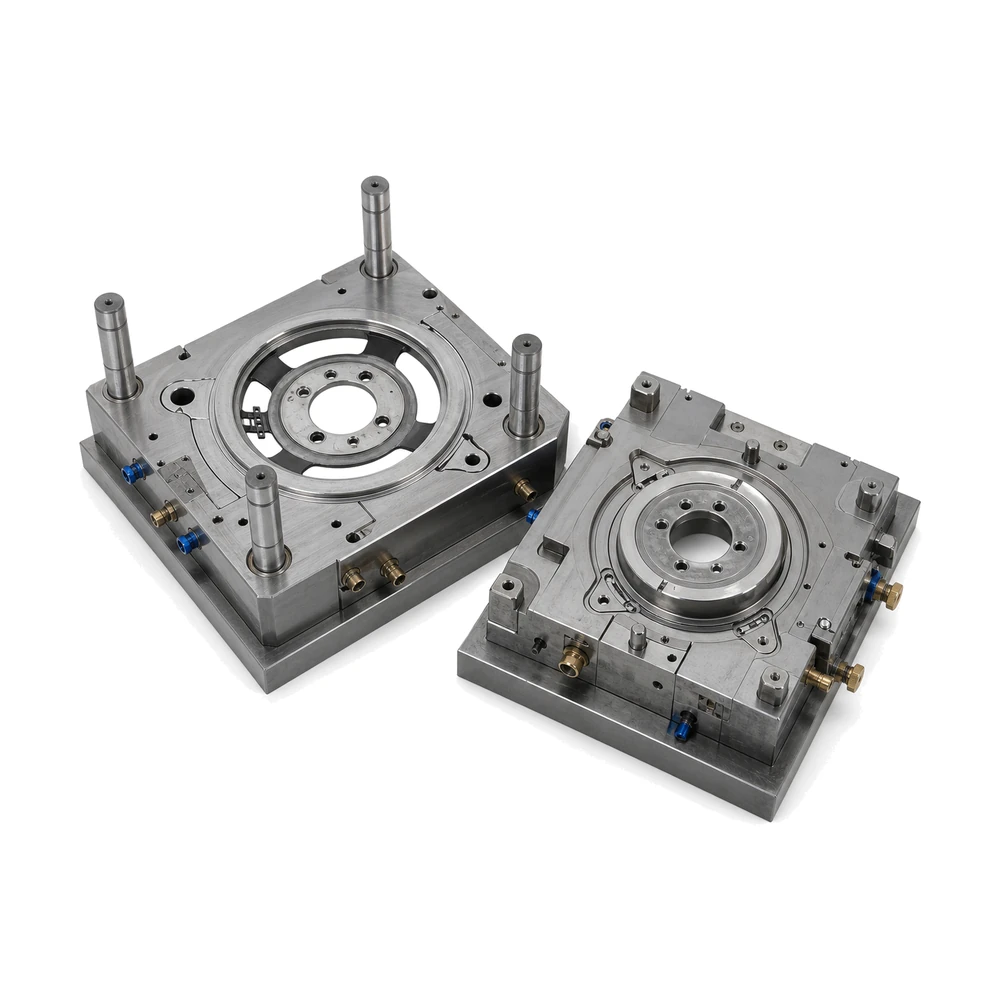

High Volume Car Speaker Mold for Long Production Runs
Automotive speaker components require consistent dimensions, surface quality and reliable production performance. This high volume car speaker mold uses H13 steel hardened to 48–52 HRC, providing improved wear resistance for continuous injection molding with ABS+17%GF.
The mold is designed for up to 800,000 shots under proper operating and maintenance conditions, making it suitable for long-term automotive audio production programs.
H13 Automotive Injection Mold Construction
The core and cavity are manufactured from hardened H13 tool steel to improve durability during repeated molding cycles.
The 48–52 HRC hardness specification supports the processing of glass-fiber-reinforced ABS materials, while the S45C mold base provides structural stability. DME standard components are used for better compatibility and easier maintenance.
Designed for ABS+17%GF Speaker Components
This mold is developed for ABS reinforced with 17% glass fiber, a material commonly used where strength and dimensional stability are required.
The hardened H13 core and cavity help reduce wear caused by reinforced materials. Final mold design can be adjusted according to resin grade, shrinkage rate, wall thickness and part structure.
Customized Cavities for Production Volume
The cavity quantity can be customized based on production targets, part size and injection molding machine capacity.
Moldie evaluates key factors including:
- Speaker housing dimensions
- Annual production quantity
- Material requirements
- Part structure
- Gate position
- Ejection design
- Surface texture requirements
This ensures the automotive injection mold matches your actual production needs.
Stable Cold Runner System
The mold uses a cold runner system designed for reliable automotive speaker component production.
Runner size, gate type and gate position can be optimized according to ABS+17%GF flow characteristics and part geometry to support stable filling and molding performance.
