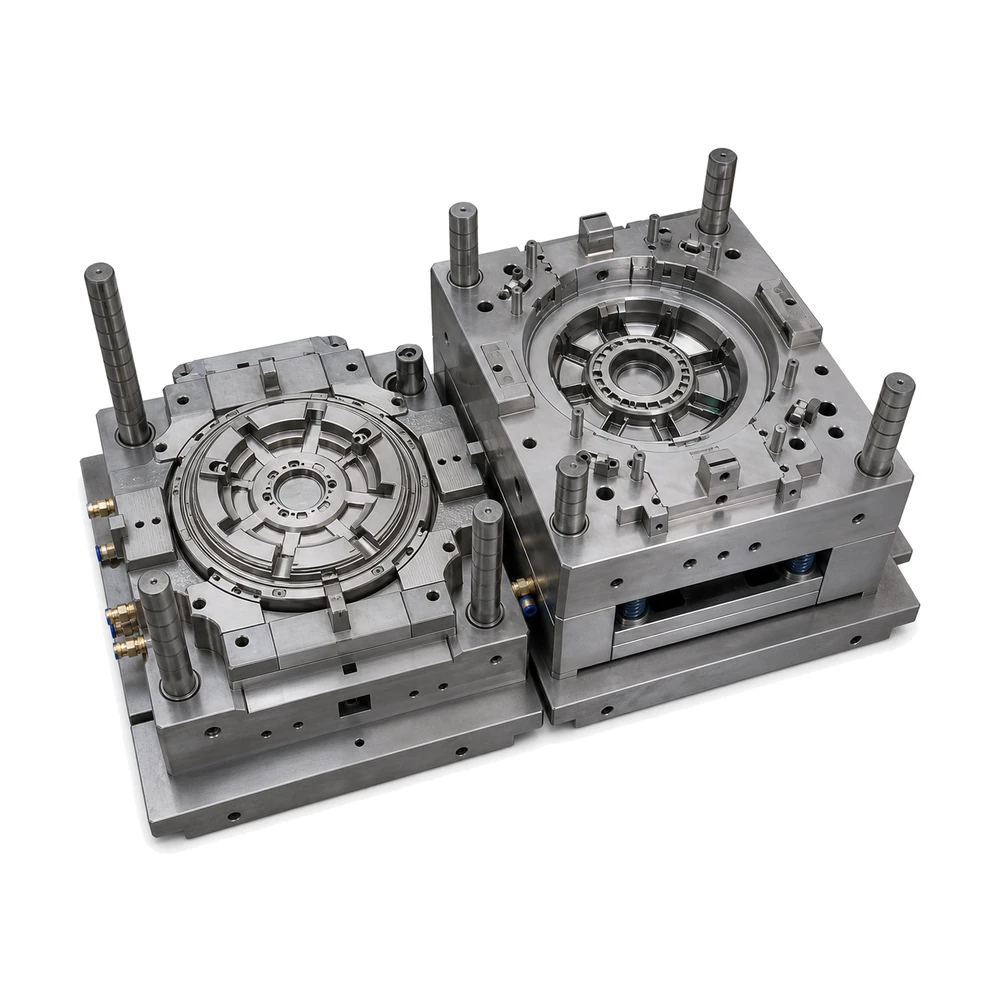

ABS Automotive Speaker Mold and Injection Mold Tool
Moldie manufactures custom ABS automotive speaker mold solutions for producing durable and dimensionally stable plastic speaker housings used in vehicle interiors. This mold is engineered for ABS+17%GF material and supports the consistent production of automotive audio components with textured surfaces and controlled color appearance.
Built with a P20 steel core and cavity, an S45C steel mold base and internationally recognized DME components, this automotive injection mold tool provides a reliable solution for both new automotive audio projects and established production programs.
The number of cavities can be customized according to your expected output, injection molding machine and part design.
Mold Specifications
| Item | Specification |
|---|---|
| Product Name | ABS Automotive Speaker Mold |
| Molded Part Material | ABS+17%GF |
| Surface Finish | Texture |
| Color Reference | RAL / PANTONE |
| Core and Cavity Steel | P20 |
| Core and Cavity Hardness | 28–32 HRC |
| Mold Base Steel | S45C |
| Standard Components | DME |
| Runner System | Cold Runner |
| Number of Cavities | Customized |
| Expected Mold Life | Up to 300,000 shots |

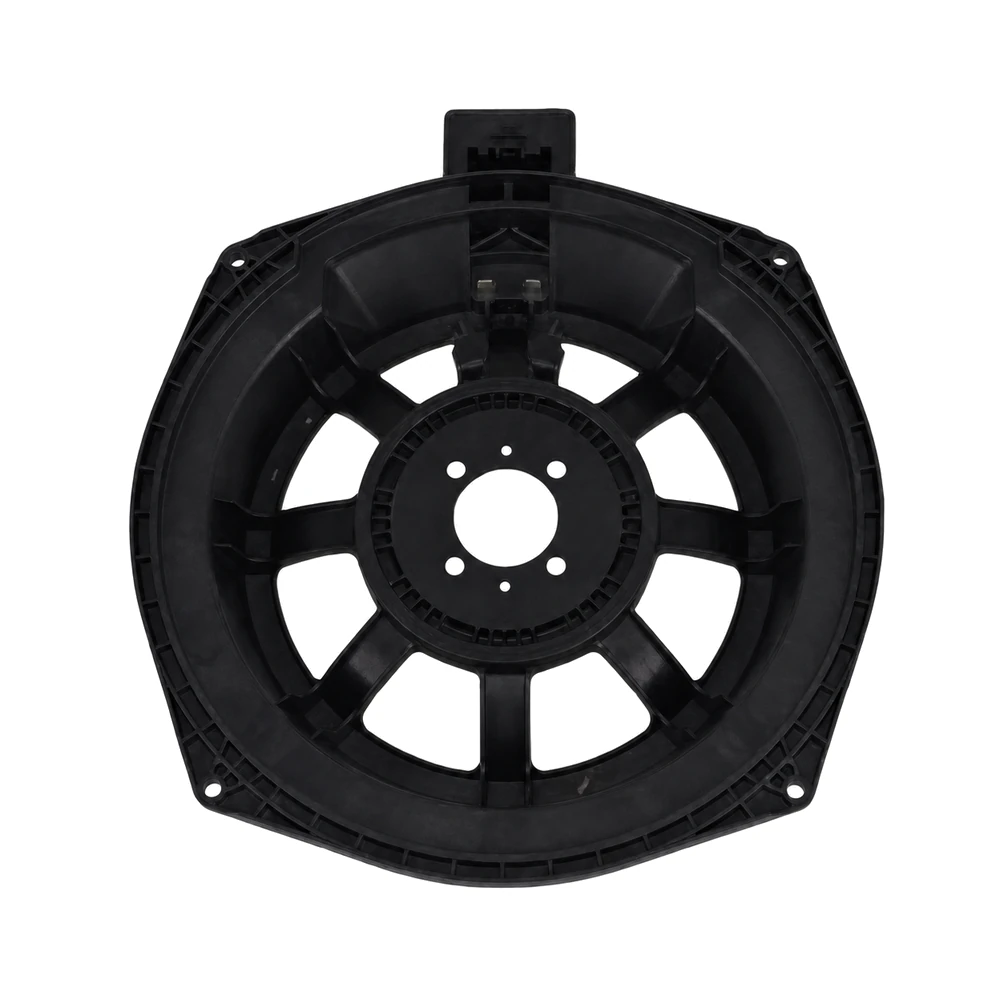

Custom ABS Automotive Speaker Mold for Automotive Audio Parts
Automotive speaker housings must maintain their shape, surface appearance and assembly dimensions during repeated production. Poor tooling can result in visible defects, inconsistent texture, deformation or difficulty during final assembly.
Our ABS automotive speaker mold is developed specifically for processing ABS reinforced with 17% glass fiber. The material provides the rigidity and dimensional stability required for automotive interior speaker components.
The mold can produce a consistent textured surface directly during the injection molding process. Finished components can also be matched to specified RAL or PANTONE color references, helping the speaker housing coordinate with surrounding vehicle interior parts.
Reliable Automotive Injection Mold Tool Construction
The performance of an automotive mold depends on the materials used for its core, cavity, mold base and standard components.
This automotive injection mold tool uses P20 steel for the core and cavity. The steel is treated to a hardness of 28–32 HRC to support stable molding performance and consistent part quality.
An S45C steel mold base provides structural support during high-pressure injection cycles. DME standard components are used to simplify maintenance and replacement while improving compatibility with international tooling requirements.
The mold is designed for a service life of up to 300,000 shots under proper production and maintenance conditions.
Customized for Your Automotive Speaker Housing
Every automotive speaker component has different mounting points, grille structures, wall thicknesses, textures and assembly requirements. For this reason, the mold should be developed according to your actual product drawing rather than based on a standard mold configuration.
Moldie can customize the following elements:
- Core and cavity construction
- Number of cavities
- Parting line position
- Gate and runner layout
- Ejection structure
- Surface texture
- RAL or PANTONE color requirements
- Mold dimensions for your injection machine
Before quotation, you can provide your 3D drawing, preferred material, annual production quantity, injection machine information and required surface finish. These details help us evaluate the appropriate mold structure.
