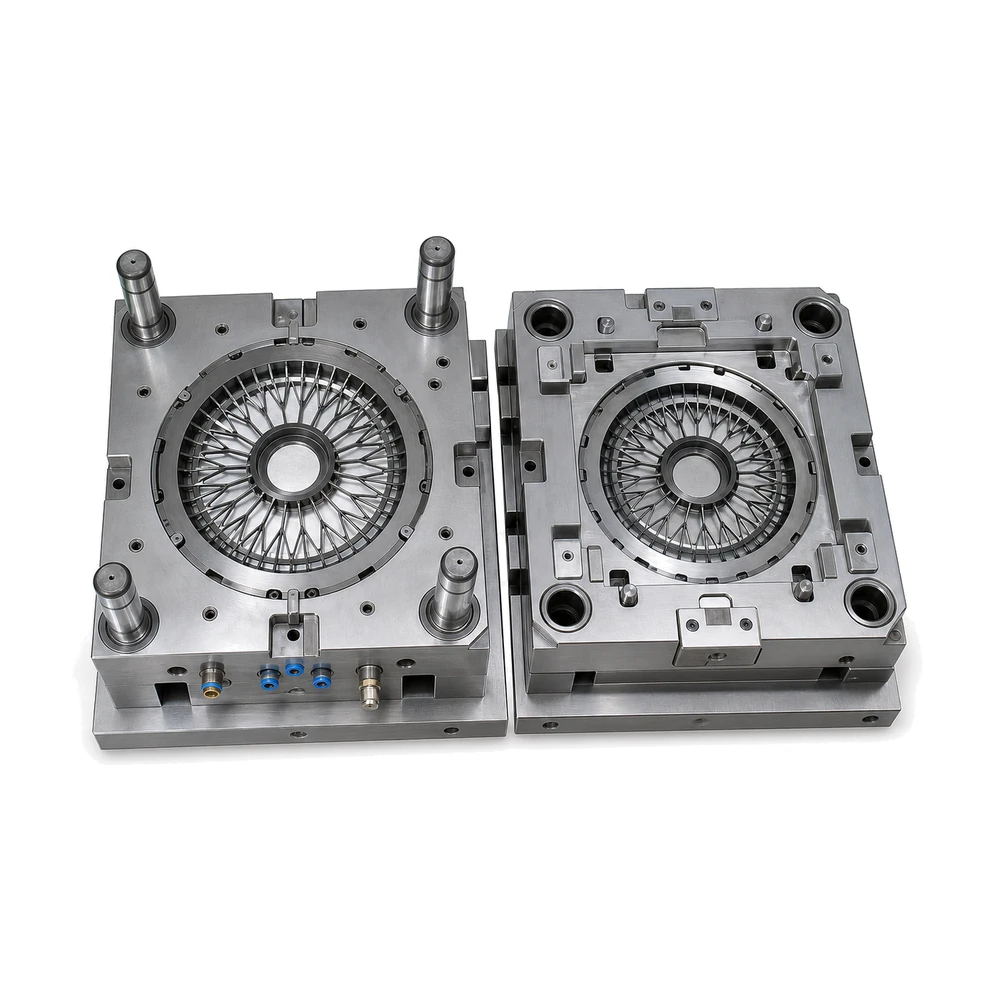

Custom Car Speaker Basket Injection Mold

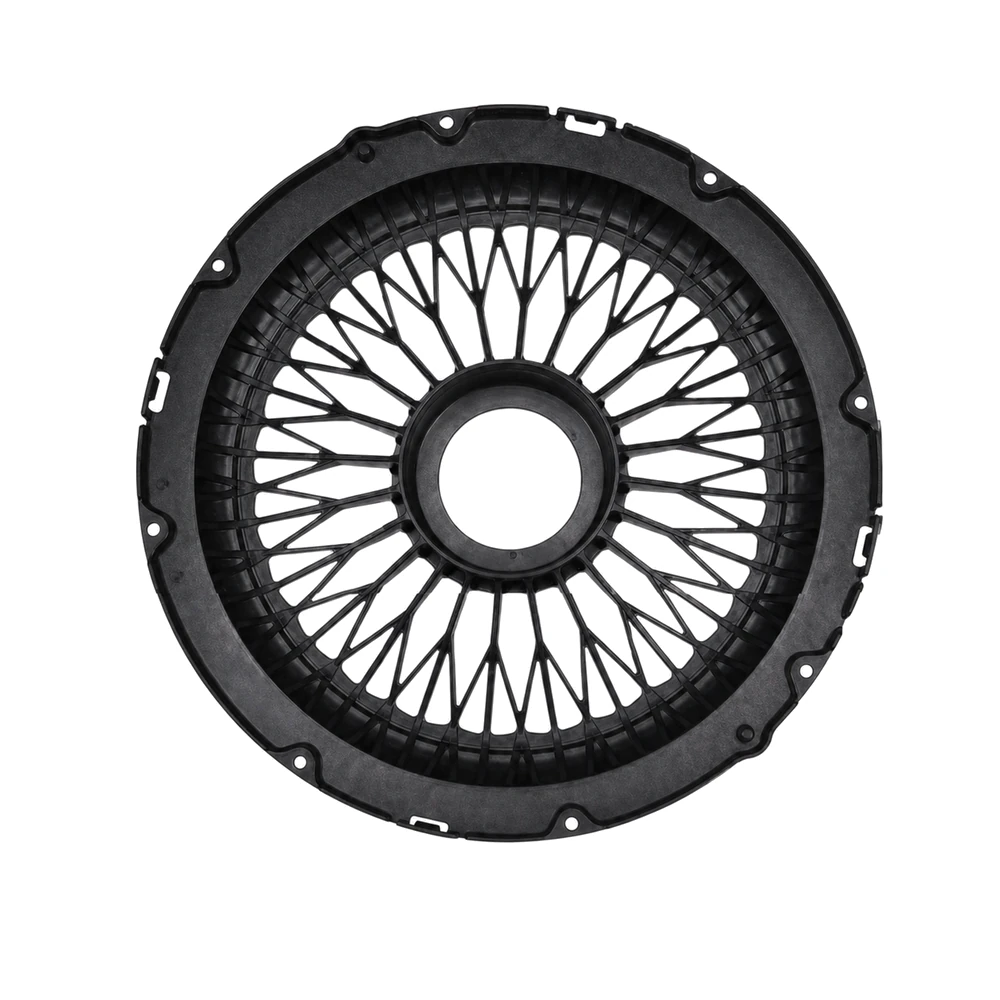

Moldie manufactures custom car speaker basket injection mold solutions for high-volume automotive audio component production. Designed for ABS reinforced with 17% glass fiber, this mold supports the production of rigid, dimensionally stable speaker baskets with a polished surface and consistent appearance.
The core and cavity are made from H13 tool steel and heat-treated to 48–52 HRC. This hardened structure provides improved wear resistance when molding glass-fiber-reinforced materials. An S45C steel mold base maintains structural stability during repeated high-pressure cycles, while DME standard components simplify maintenance and replacement for international customers.
The cold runner system, cavity quantity, gate position, ejection structure and overall mold dimensions can be customized according to the basket design, annual production target and injection molding machine capacity. RAL and PANTONE references can also be followed for consistent part color.
With an expected mold life of up to 800,000 shots under suitable operating and maintenance conditions, this tooling is suitable for automotive audio projects that require long production runs. For buyers comparing automotive injection molding suppliers, Moldie can evaluate your 2D or 3D drawing, resin specification, tolerance requirements and production volume before recommending the appropriate mold structure.
Specification Sheet
| Item | Specification |
|---|---|
| Product Name | Car Speaker Basket Injection Mold |
| Application | Automotive loudspeaker baskets and audio support parts |
| Molded Material | ABS+17%GF |
| Surface Finish | Polish |
| Color Reference | RAL / PANTONE |
| Core and Cavity Steel | H13 |
| Core and Cavity Hardness | 48–52 HRC |
| Mold Base Steel | S45C |
| Standard Components | DME |
| Runner System | Cold Runner |
| Number of Cavities | Customized |
| Expected Mold Life | Up to 800,000 shots |
Send us your product drawing, material grade, target output and injection molding machine information to receive a customized car speaker basket injection mold quotation.
