OEM Aluminium Die Casting Mould Manufacturer

SKU: MLD-14-YZ001 Category:
Product Description

Basic information:

Brand Moldie
Mold Base LKM C50 + P20 for AB, Cast iron etc.
Inserts(cavity and core) Dievar, H13, 8407, 1.2344 or the material you required
Standard HASCO, DME, MISUMI, PUNCH and so on
Product Material ADC12, ADC14, A360, A380, AlSi9Cu3 and so on
Mold Treatment Heat Treatment  >HRC45
Product Surface Sand blasting, Powder coated, Painting, Anodizing, etc
Shape & Color Can be design according to your needs
Process High Pressure Die Casting
Certificated ISO 9001:2015 Certificated

Trade information:

MOQ 1 set
Mold lead time T1 sample, about 3-10 weeks, according to the mold requirement
Production lead time 2-5 weeks, according to the order Qty
Mold payment term 50% T/T deposit with PO, balance 50% T/T after sample approved
Products payment term 30% T/T deposit with PO, balance 70% T/T before shipment
Port of loading Ningbo or Shanghai port

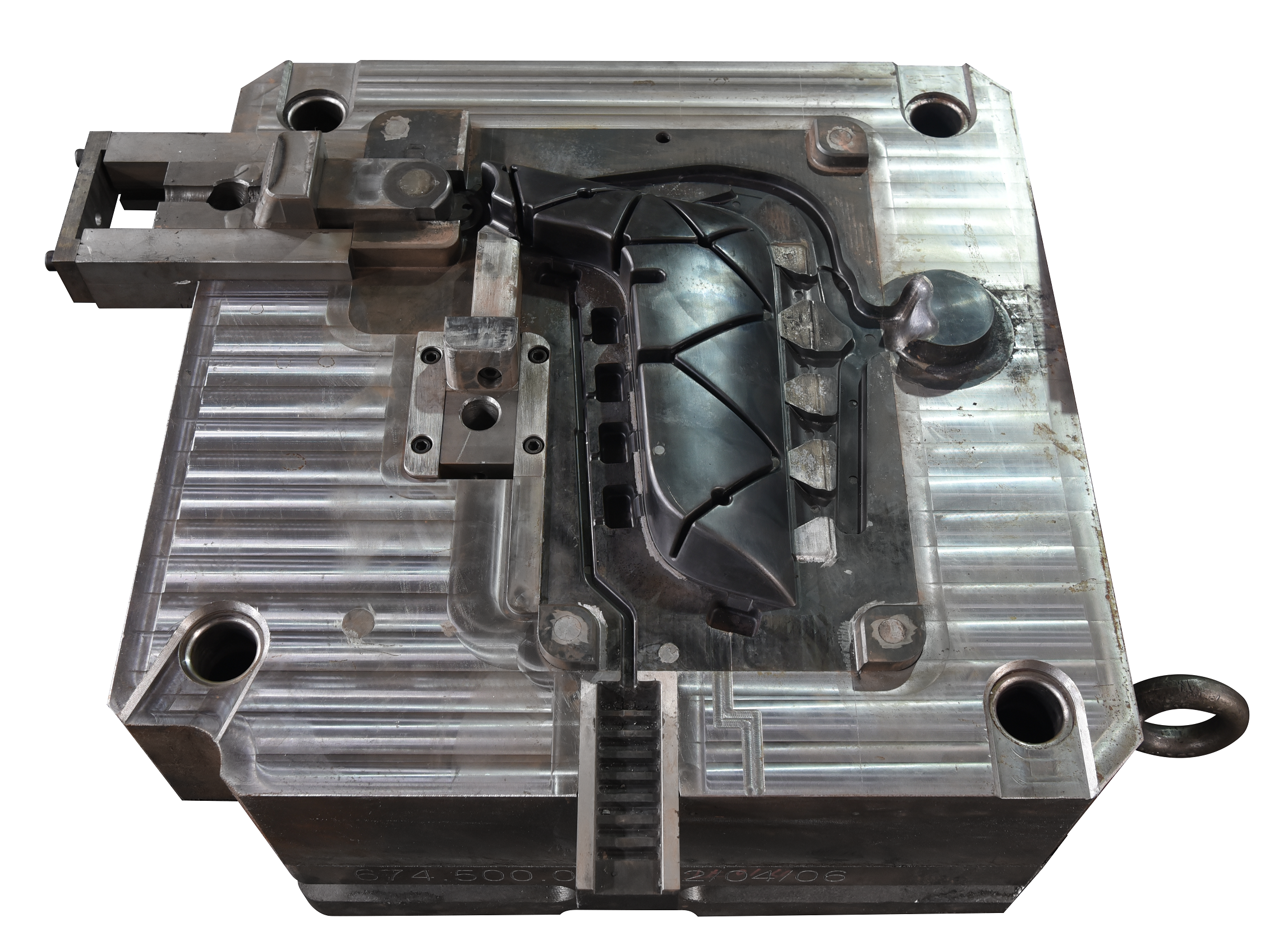

Some pictures of our mould die casting:

Some pictures of our mould die casting Some pictures of our mould die casting Some pictures of our mould die casting
Some pictures of our mould die casting Some pictures of our mould die casting Some pictures of our mould die casting

Aluminium die casting mould manufacturers

Die casting involves using a heat-resistant mold to manufacture different products using intense pressure. The process is quite complex, and we use molten metal to produce parts with the least wall thickness possible.

Aluminium die casting mould manufacturers(1)

Die casting molds is an excellent choice because it gives better results and can be reused, unlike sand castings molds. We source an aluminum alloy with the highest quality for aluminum die castings.

Die casting mold manufacturers in china – Moldie

Die cast molds are used in the mass production of aluminum parts making it easier than the initial process. Although the die tooling cost is high, it’s still the best quality and an economical choice. With CNC machining, die cast aluminum production has become faster and more efficient.

At Moldie, we are devoted to giving you high-quality die castings. We are among the most experienced aluminium die casting mould manufacturers in China, offering various wholesale tools.

We offer you a one-stop shop from design to production in which we consider your input and requirements for every mile. Our innovative designs are world-class, and you’ll get well-performing products at an affordable price.

Die casting mold manufacturers in china - Moldie(1)

The excellent results of our aluminium die casting mold set us apart as the best custom die and mold manufacturer.

Moldie professional mold machining

The aluminium die casting toolings you get from Moldie are manufactured using the following high-end molding equipment:

  • Electric discharge equipment
  • Mold CNC machine
  • Electrode making machine
  • Die casting mold machine
  • Large and refined size molding machine

Moldie professional mold machining(1)

Our die-casting molds are different and better because we have the best machining and die-casting tools. Also, we follow an excellent quality control process that delivers flawless aluminum die castings

How we can customize your die-casting molds

Moldie has an in-house tooling shop that meets different demands without any delays. We can customize your die casting by using:

  • Advanced technology:Moldie manufactures quality products using the latest technology and advanced analysis techniques for the die-cast mold flow. Further, we provide professional customization for your die-cast moulding to give you a unique product and contribute to your marketing
  • Necessary tooling:During our production phase, we create a virtual simulation that shows the metal flow.
  • Innovative analysis:Before moving from the design phase to production, we analyze all the necessary results. This ensures that the end aluminium die casting mold product has all typical risks mitigated, and our service is flawless.

Moldie uses state-of-the-art machines and technologies in testing the manufactured die casting, and you can be assured that our products are high quality.

Die casting mold explained

Die casting mold is a tool to make metal by forcing molten metal into it. Aluminum die casting mold uses aluminium alloy as the metal.

Die casting mold explained(1)

Die casting mold uses computer numerical controlled (CNC) machines, which are quite expensive during its purchase and employment of skilled people. However, this price is negligent during the manufacturing of a large number of parts

How you can benefit from aluminum die casting mold

Die casting is a very effective way of manufacturing aluminium metal parts. The following are the benefits die casting mold design brings to Moldie’s production:

  • Excellent dimensional flexibility:Die casting has great stability, and designers can easily add thin walls and tight tolerances to the design. This makes die-cast mold manufacturing of intricate parts faster and easier.
  • Great durability:Aluminium die casting molds can withstand high pressure and last longer.

How you can benefit from aluminum die casting mold(1)

  • Higher production rate:Aluminium die-cast molding supports a vast production capacity. The molds make this possible, and parts are produced in a short time frame.

Commonly manufactured die casting molds

There are many die-casting molds you can choose from. They are classified depending on their service and structure. The following are the categories based on patterns:

  • Single cavity mold
  • Multiple cavity mold
  • Family/combination mold

The following are based on the purpose they serve:

  • Production mold
  • Prototyping mold
  • Trimming mold
  • Unit mold

Die casting mold components

Aluminium die casting consists of various components serving different purposes. These are:

  • Vents that allow air to escape
  • Overflow channels
  • Cover die
  • Shot cylinder
  • Gates
  • Runner
  • The ejector die, plate and pins

Reasons die casting factories use lubricants in die-cast molds

Some of the reasons we use lubricants in the mold are:

  • To clean and cool the mold surface effectively
  • Form a protective coating and increase corrosion resistance
  • To make the casting ejection easier
  • Reduce the chances of cold shuts

How does Moldie ensure a longer lifetime for die-casting mold?

Die casting is expensive, and you must ensure your mold lasts long. Here is what we do to give it a longer shelf life:

  • Using a greater clamping force to increase injection precision

Die casting mold components(1)

  • Heat treatment to increase durability and strength
  • Pre-heating the die casting before injection to avoid cracking
  • Careful machining to prevent internal stress

Critical factors we consider during aluminum die-casting mold design

The following are the factors we consider to enhance the mold’s functionality:

  • Careful selection of the orientation and part of parting lines
  • Carefully aligning undercuts with parting lines
  • Limiting the depth of pockets
  • Avoiding thick walls and ensuring uniform wall thickness
  • Providing an adequate draft angle.

Quality control measures Moldie maintains during aluminium mold manufacturing process

We understand that aluminium die casting mold requires strict quality control to avoid defects in the mold.

The following are some measures we have in place:

  • Using X-rays to check for internal defects
  • Inspecting the die casting with a coordinate measuring machine that verifies all geometric parameters
  • Regular communication with customers, including the international clients
  • Thorough checking of the model and coding

The above measures are maintained from start to finish, and your aluminum mold will have no errors

Why you should partner with Moldie for aluminum die casting mold manufacturing

There are many manufacturers in the die casting industry. However, the following are the reasons you should work with our company:

  • We implement a strict quality management system to achieve high-quality manufacturing
  • Our company has a talented workforce who can optimize and design molds in a short period
  • We have experience in machining, and we can give you suggestions and tips to save costs.
  • We use the latest equipment in manufacturing

Moldie for aluminum die casting mold manufacturing(1)

The benefits above are just a few reasons you should work with us. You can visit our offices for a personal view.

Services Moldie can provide for aluminum die-casting

Moldie has many services for aluminium die casting mold, which include the following.

  • Avail your design for manufacturing:Our engineers can provide you with the design for your mold and optimize your models for a better casting workflow that’s more manageable for the machine.

Services Moldie can provide for aluminum die-casting(1)

  • Model validation:We can handle modern mold simulation software to validate the numerical analysis of the flow data. This minimizes any chances for error during manufacture.
  • Maintenance and repair:Moldie can repair your used molds at the tool shop. The company regularly maintains your molds to ensure a longer tool life.
