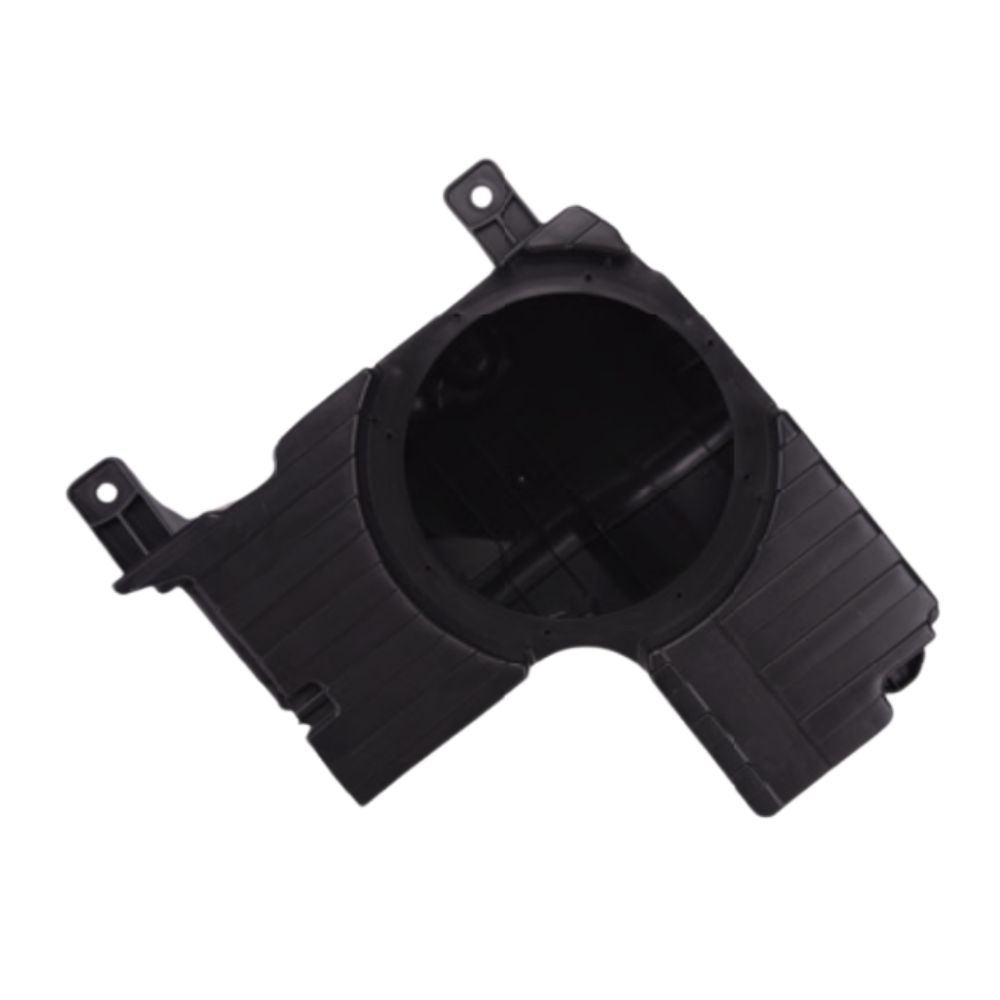

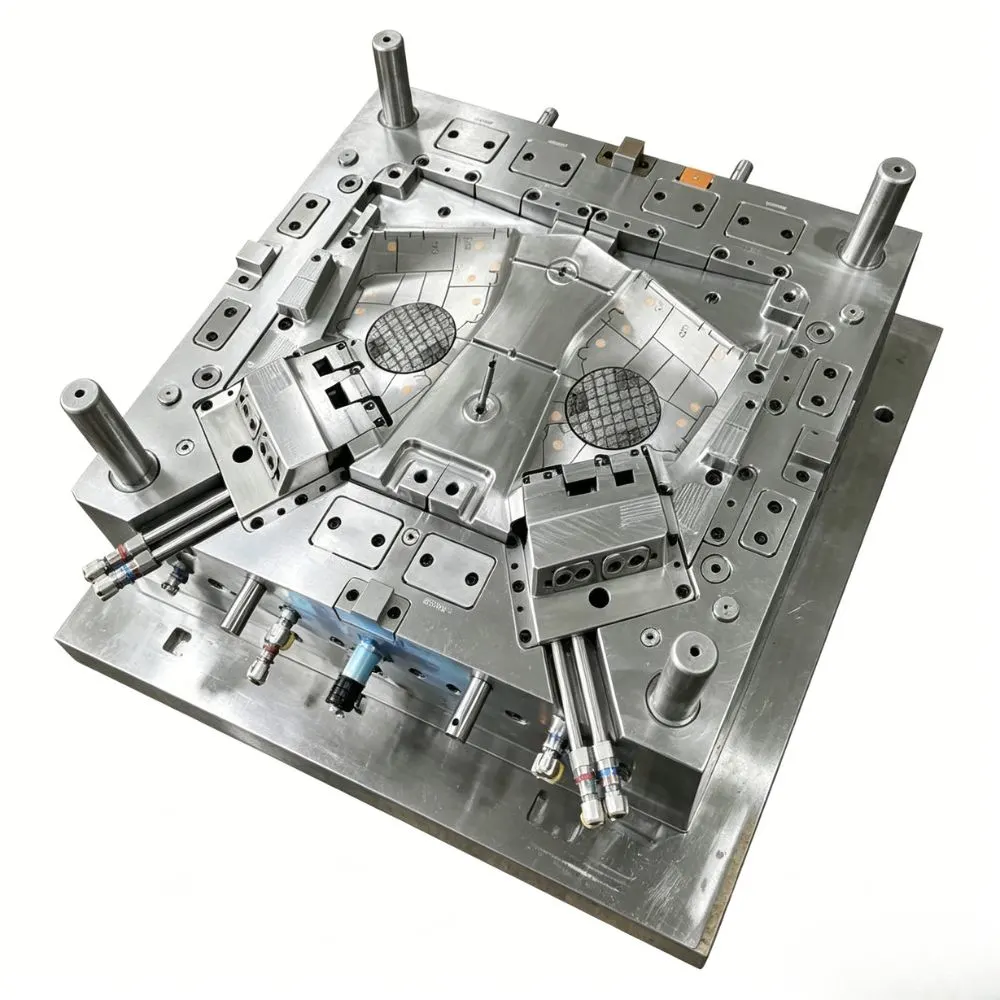

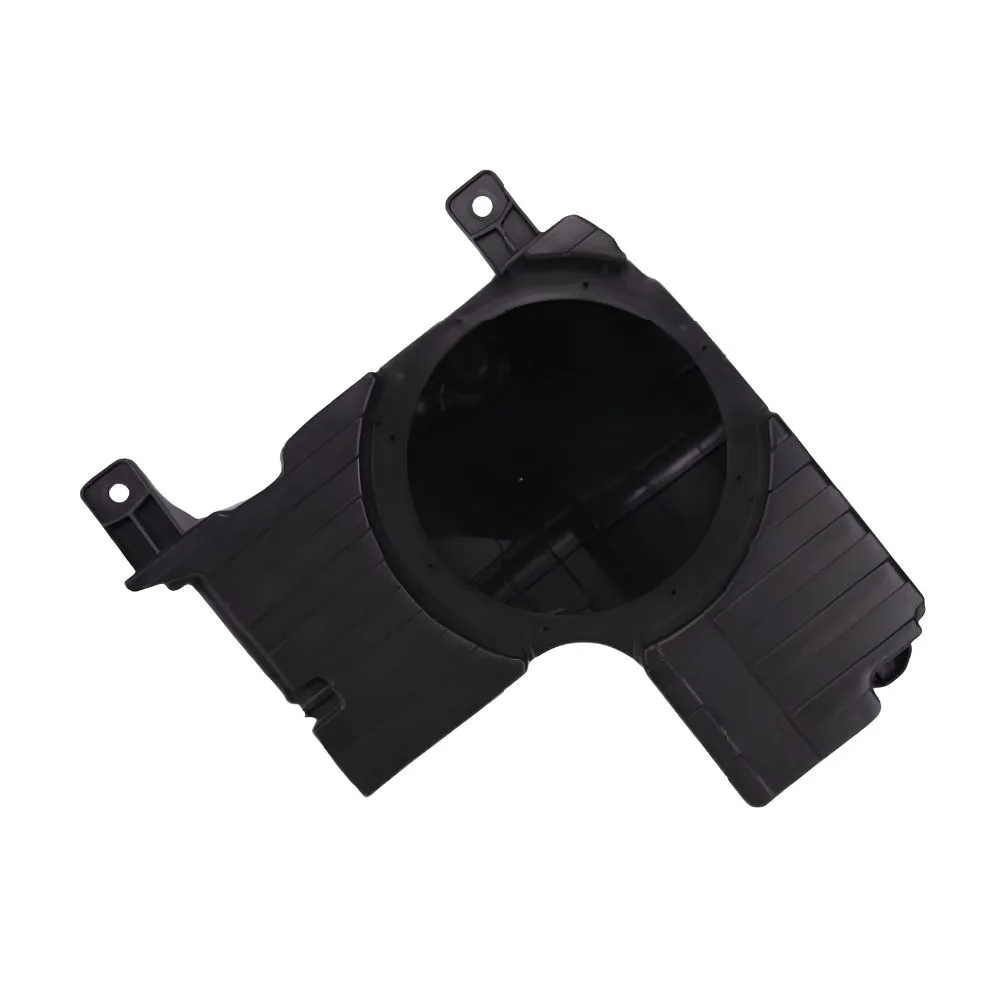

This injection mould is purpose-built for high-precision production of automotive audio speaker housings and grilles. It supports PP, ABS, PC/ABS, and other automotive-grade thermoplastics. Finished parts feature a premium textured surface finish, with exact color matching to vehicle interior tones via RAL and PANTONE color standards. The mould adopts a modular cavity design, enabling flexible configuration from prototype validation to mass production.
| Parameter | Specification |
|---|---|
| Core & Cavity Steel | P20 pre-hardened (standard) / 718H / NAK80 / H13 / S136 (upgrade options) |
| Core & Cavity Hardness | P20: 28–32 HRC; 718H: 33–38 HRC; H13: 48–52 HRC (quenched) |
| Mould Base Material | S45C steel (standard) / LKM / HASCO / DME (per customer spec) |
| Mould Base Hardness | 160–180 HB |
| Standard Components | HASCO (default) / DME / MISUMI / LKM |
| Runner Type | Cold Runner (optimal for PP) / Hot Runner |
| Gate Type | Edge gate / Submarine gate / Pin gate / Valve gate hot tip (part-dependent) |
| Ejection System | Ejector pins + sleeves + stripper plate / Hydraulic ejection (for large parts) |
| Cooling System | Straight drilled channels + baffle/bubbler wells + beryllium-copper inserts for high-heat zones |
| Cooling Medium | Industrial recirculated water (standard) / Oil temperature control via mould heater (precision parts) |
| Mould Dimensions | Custom; typical automotive speaker mould: 400×450×450 mm — 600×700×550 mm |
| Mould Weight | 300 kg – 1,200 kg (cavity & size dependent) |
| Compatible Press Tonnage | 160T – 450T |
Why This Mould
- Built to last. P20 steel core and cavity with S45C mould base, engineered for 300,000+ injection cycles without compromise.
- HASCO-standardized. Globally compatible standard components make maintenance and spare part replacement straightforward — no vendor lock-in.
- Cold runner efficiency. Designed specifically for PP material flow, reducing setup complexity and cycle time.
- Surface quality that sells. From mirror polish (SPI A1–A3) to textured leather grain, the finished parts match automotive interior standards with consistent color reproduction.
- Flexible cavity layout. Start with a single cavity for validation, scale to four cavities for volume production — the modular design adapts to your demand.
Production Capability
- CNC machining (MAKINO / DMG MORI) | Sodick EDM & wire-cut
- Autodesk Moldflow analysis included with every project
- HEXAGON CMM inspection (±0.0015 mm)
- ISO 9001:2015 certified
What You Get
Every mould ships with:
- 2D assembly & 3D CAD files (STP format)
- Spare ejector pins, springs, cooling connectors
- Lifting eye bolts & locating ring
- Maintenance manual & mould trial parameter records
- First-article dimensional inspection report
